Self-Development Kit for Perl

19 September 2023 12:33

Introduction

Our Self-Development Kits (SDKs) are Connector Libraries for our insanely fast Registrar Backend Systems. The SDKs cover the API Communication Best Practives and easy ways for requesting and accessing data. Do not hesitate to reach out. The API Communications happens based on POST Requests via HTTPS Protocol to respective Registrar Backend System. We're not communicating with a REST API because these SDKs cover multiple Brands in a generic way and for some brands, there's no REST API available. In addition the available REST APIs are not following a generic structure - a must have for a generc cross-brand compatible library. In addition they are not supporting plain contact data handling in Requests yet which is a must have for 3rd-party Software Integrations as dealing with contact handles and their IDs in commands isn't possible.

Although this sounds very technical, we promise that this Library helps already a lot in regards to this kind of API Communication. Left is to learn about the exact API Commands to request for ordering services and products or just for accessing the data you're looking for. This is where a REST API and a related client library would be more self-explaining and doing definitely better. We are aware of this!

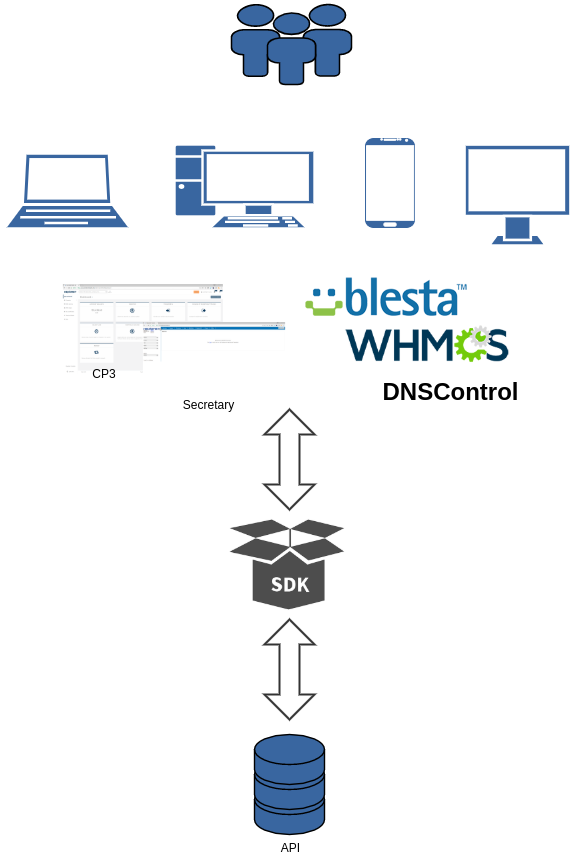

Sadly, our SDKs have a different level of supported features and registrar brands. Still, the below UML Diagram is representing the Core possibilities and can be used as high-level overview. For exact details we recommend checking the SDK-specific Class Documentation. Our PHP-/NODE-SDKs cover right now the most advanced structure as they are used in-house and in our 3rd-party Software Integrations. We also recommend having an eye on the Demo Apps of our SDKs to identify how they have to be used.

All SDKs are supporting brand HEXONET (HX), except the PHP-SDK which is supporting CentralNic Reseller (CNR) as well.

FWIW

Features

Automatic IDN Domain name conversion to punycode (our API accepts only punycode format in commands)
Allows Nested Arrays in API Commands to improve in direction of Bulk Parameters
Connecting and communication with our API
Possibility to use a custom mechanism for debug mode
Several ways to access and deal with response data
Getting the command again returned together with the response
Sensible Data (e.g. Password) is hidden in Debug Output and Data Access Methods for Security Reasons
Sessionless Communication
Session based Communication
Possibility to save API session identifier in session
Configure a Proxy for API communication
Configure a Referer for API communication
High Performance Proxy Setup

UML Diagram

Resources

Our Classes provide further useful Methods for getting the connection configured and response data accessed. Have an eye on the Class Documentation and the UML Diagram for further insights.

Class Documentation: PHP-SDK, NODE-SDK, PYTHON-SDK, JAVA-SDK, GO-SDK, PERL-SDK
HEXONET API Documentation
CentralNic Reseller API Documentation

Basic Usage Examples

We have very basic Demo Apps available showing how to integrate and use our SDKs:

PHP-SDK, NODE-SDK, PYTHON-SDK, JAVA-SDK, GO-SDK, PERL-SDK

OT&E System

OT&E Sytem stands for Operational Test & Evaluation System. No costs, just for playing around with things. This system can be seen as a kind of sandbox system that allows to test your integration first before going live with it. This system and the use of our products and services is completely free of charge. To use this system, use APIClient’s method `useOTESystem`. Otherwise Live System will be used by default.

LIVE System

The real world system - This system and the use our services and products can lead to real costs depending on what you’re exactly doing. Live System will be used by default, but you can also use APIClient’s method `useLIVESystem` to add it in source code for reference.

Requirements

Installed latest version of perl 5
Installed cpanm (App::cpanminus) as suggested alternative for cpan command

Installation Instructions

# by Module ID (suggested!)
cpanm WebService::Hexonet::Connector~2.0000

# or by filename
cpanm HEXONET/WebSservice-Hexonet-Connector-v2.0.0.tar.gz

NOTE: I got this only working by sudo’ing these commands. In case you install by filename, please check the release overview for the most current release and use that version instead.

High Performance Proxy Setup

Long distances to our main data center in Germany may result in high network latencies. If you encounter such problems, we highly recommend to use this setup, as it uses persistent connections to our API server and the overhead for connection establishments is omitted.

1 - Apache Modules

At least Apache version 2.2.9 is required.

The following Apache2 modules must be installed and activated:

proxy.conf
proxy.load
proxy_http.load
ssl.conf # for HTTPs connection to our API server
ssl.load # for HTTPs connection to our API server

2 - Apache Configuration

An example Apache configuration with binding to localhost (example for HEXONET!):

<VirtualHost 127.0.0.1:80>
    ServerAdmin webmaster@localhost

    ServerSignature Off

    SSLProxyEngine on
    ProxyPass /api/call.cgi https://api.ispapi.net/api/call.cgi min=1 max=2
    ProxyPass /api-ote/call.cgi https://api-ote.ispapi.net/api/call.cgi min=1 max=2
    <Proxy *>
        Order Deny,Allow
        Deny from none
        Allow from all
    </Proxy>
</VirtualHost>

After saving your configuration changes please restart the Apache webserver. Basically, this example also works for any other Registrar API. You'll just have to customize the ProxyPass settings. ProxyPass snippet for CentralNic Reseller (CNR):

    # ...
    ProxyPass /api/call.cgi https://api.rrpproxy.net/api/call.cgi min=1 max=2
    ProxyPass /api-ote/call.cgi https://api-ote.rrpproxy.net/api/call.cgi min=1 max=2
    # ...

3 - Implementation

use 5.030;
use strict;
use warnings;
use WebService::Hexonet::Connector;

my $cl = WebService::Hexonet::Connector::APIClient->new();
$cl->useOTESystem();# LIVE System would be used otherwise by default
$cl->useHighPerformanceConnectionSetup();# Default Connection Setup would be used otherwise by default
$cl->setCredentials('test.user', 'test.passw0rd');
my $response = $cl->request({ COMMAND => "StatusAccount" });

So, what happens in code behind the scenes? We communicate with localhost (so our proxy setup) that passes the requests to the HEXONET API. Of course we can’t activate this setup by default as it is based on Steps 1 and 2. Otherwise connecting to our API wouldn’t work.

Just in case the above port or ip address can’t be used, use function setURL instead to set a different URL / Port. http://127.0.0.1/api/call.cgi is the default URL for the High Performance Proxy Setup. e.g. $cl->setURL('http://127.0.0.1:8765/api/call.cgi'); would change the port. Configure that port also in the Apache Configuration (-> Step 2)!

Don’t use https for that setup as it leads to slowing things down as of the https overhead of securing the connection. In this setup we just connect to localhost, so no direct outgoing network traffic using http. The apache configuration finally takes care passing it to https for the final communication to the HEXONET API.

Customize Logging / Outputs

When having the debug mode activated WebService::Hexonet::Connector::Logger will be internally used for doing outputs. Of course it could be of interest for integrators to look for a way of getting this replaced by a custom mechanism like forwarding things to a 3rd-party software, logging into file or whatever.

use 5.030;
use strict;
use warnings;
use WebService::Hexonet::Connector;
use MyCustomLogger::Logger;

my $cl = WebService::Hexonet::Connector::APIClient->new();
$cl->enableDebugMode() # activate debug outputs/logging
$cl->setCustomLogger(MyCustomLogger::Logger->new()) # set your own mechanism by providing your own class
$cl->setCredentials('test.user', 'test.passw0rd');
my $response = $cl->request({ COMMAND => "StatusAccount" });

NOTE: Find an example for a logger class implementation plus POD documentation in lib/WebService/Hexonet/Connector/Logger.pm. If you have questions, feel free to open a github issue.

Usage Examples

Please have an eye on the respective API documentation. Here you can find information on available Commands and their response data.

Session-based API Communication

use 5.030;
use strict;
use warnings;
use WebService::Hexonet::Connector;

my $cl = WebService::Hexonet::Connector::APIClient->new();
$cl->useOTESystem();
$cl->setCredentials('test.user', 'test.passw0rd');
$cl->setRemoteIPAddress('1.2.3.4');

my $response = $cl->login();
# in case of 2FA use:
# my $response = $cl->login("12345678");

if ($response->isSuccess()) {
    # now the session will be used for communication in background
    # instead of the provided credentials
    # if you need something to rebuild connection on next page visit,
    # so in a frontend-session based environment, please consider
    # saveSession and reuseSession methods

    # Call a command
    my $response = $cl->request(
        {
            COMMAND => 'QueryDomainList',
            LIMIT => 5
        }
    );

    # get the result in the format you want
    my $res;
    $res = $response->getListHash();
    $res = $response->getHash();
    $res = $response->getPlain();

    # get the response code and the response description
    my $code = $response->getCode();
    my $description = $response->getDescription();

    print "$code $description";

    # close Backend API Session
    # you may verify the result of the logout procedure
    # like for the login procedure above
    $cl->logout();
}

Sessionless API Communication

use 5.030;
use strict;
use warnings;
use WebService::Hexonet::Connector;

my $cl = WebService::Hexonet::Connector::APIClient->new();
$cl->useOTESystem();
$cl->setCredentials('test.user', 'test.passw0rd');
$cl->setRemoteIPAddress('1.2.3.4');
# in case of 2FA use:
# $cl->setOTP("12345678")

# Call a command
my $response = $cl->request(
    {
        COMMAND => 'QueryDomainList',
        LIMIT => 5
    }
);

# get the result in the format you want
my $res;
$res = $response->getListHash();
$res = $response->getHash();
$res = $response->getPlain();

# get the response code and the response description
my $code = $response->getCode();
my $description = $response->getDescription();

print "$code $description";

API Command: Nested Arrays

Using the below is supported to improve using commands. It will automatically be converted to parameters DOMAIN0 and DOMAIN1 accordingly. This of course works for all commands and all such parameters.

use 5.030;
use strict;
use warnings;
use WebService::Hexonet::Connector;

my $cl = WebService::Hexonet::Connector::APIClient->new();
$cl->useOTESystem();
$cl->setCredentials('test.user', 'test.passw0rd');
$cl->setRemoteIPAddress('1.2.3.4');
# in case of 2FA use:
# $cl->setOTP("12345678")

# Call a command
my $response = $cl->request(
    {
        COMMAND => 'QueryDomainOptions',
        DOMAIN => ['example1.com', 'example2.com']
    }
);

# get the response code and the response description
my $code = $response->getCode();
my $description = $response->getDescription();

print "$code $description";
